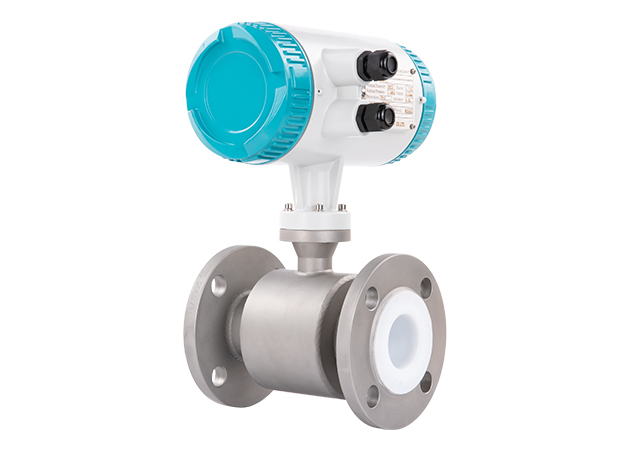

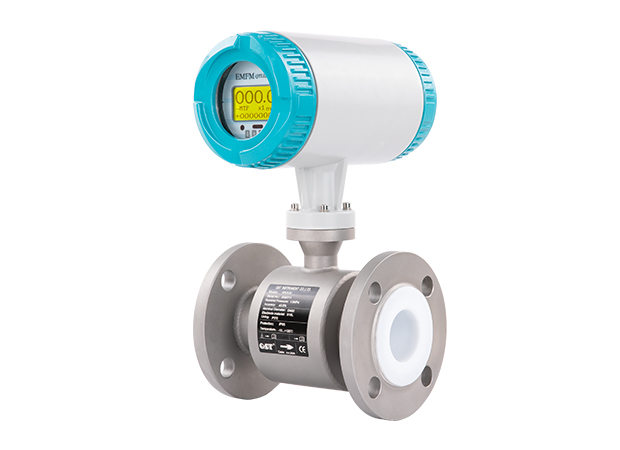

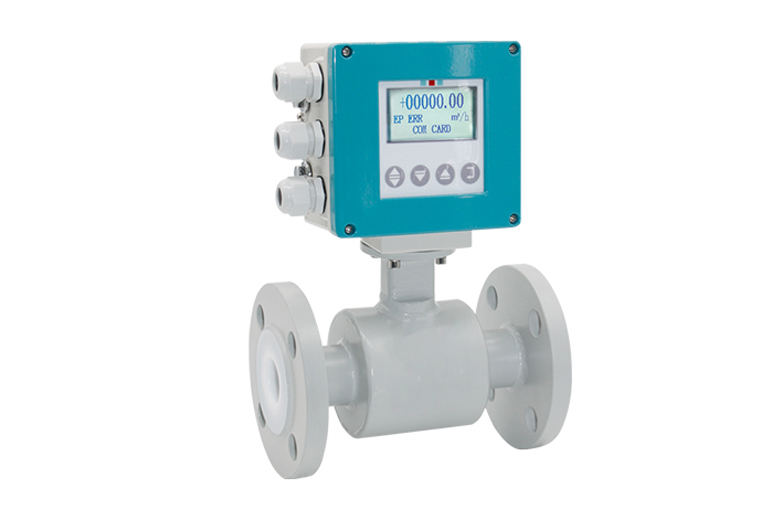

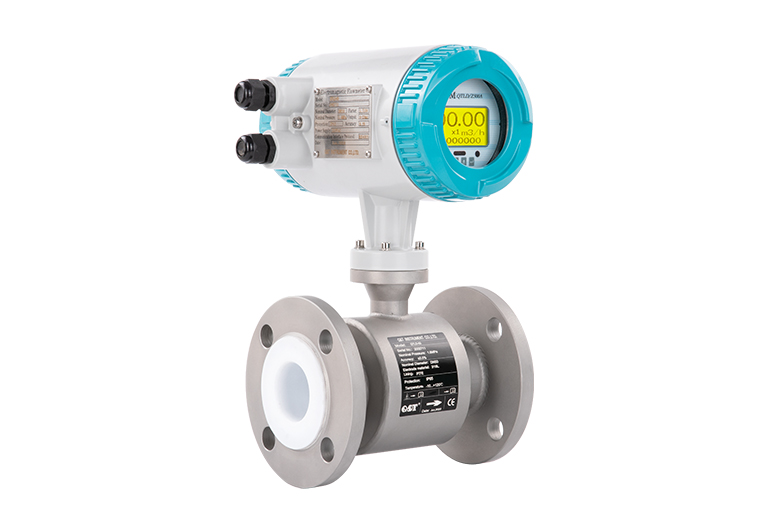

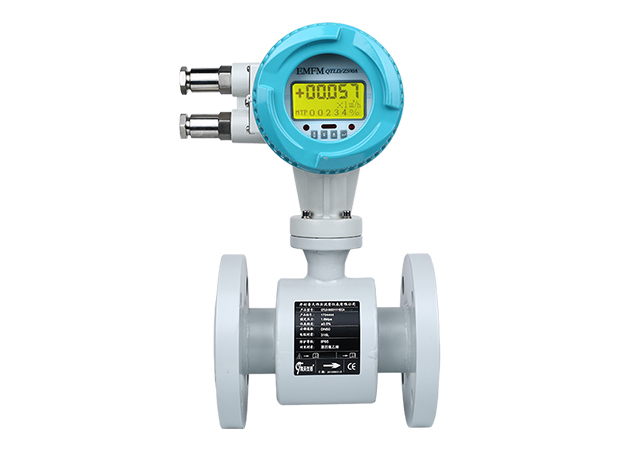

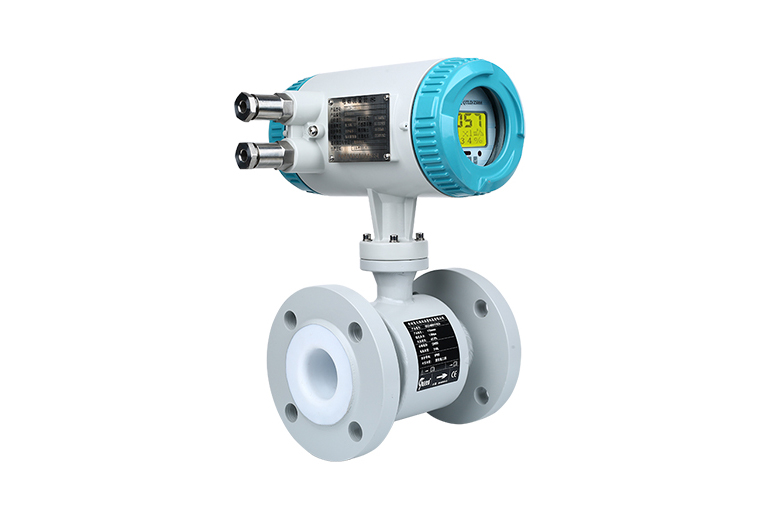

Flange Electromagnetic Flow Meter
Electromagnetic flow meter is one of the most popular flow meters. Flange type electromagnetic flow meter has been used for more than 50 years worldwide. It is widely used for all conductive liquids in every industry, such as water, acid, alkali, milk, slurry etc. Since founded in 2005, Q&T has sold more than 600 thousand electromagnetic flow meters to provide the solutions for clients in different work conditions.
Control Mode: Automatic/Semi-Automatic/Manual
Size:
DN3-DN3000mm
Output Signal:
4-20mA/Pulse
Nominal Pressure:
0.6-1.6Mpa
24 hours to reply to technical inquiries
Electromagnetic flowmeter other products
The electromagnetic flowmeter offers diverse connection methods tailored to different working conditions. Clamp connection ensures simplicity and effectiveness by securing the flowmeter with clamps onto the pipe, while flange connection provides robustness and leak-proofing through bolted flanges. Plug-in connection offers convenience for maintenance or calibration needs, allowing easy insertion into the pipe. Meanwhile, battery power supply enables portability and versatility by operating the flowmeter without external power sources, making it suitable for remote locations. Each method addresses specific industrial requirements, offering flexibility, reliability, and ease of installation in various environments.

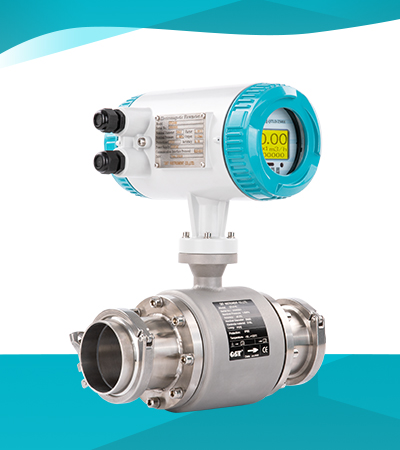

Tri-clamp Electromagnetic Flow Meter
Tri-clamp Electromagnetic Flow Meter

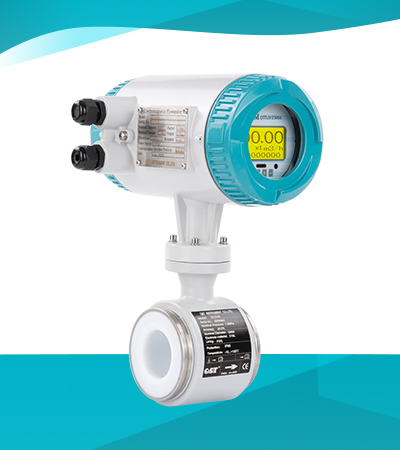

Wafer Electromagnetic Flow Meter
Wafer Electromagnetic Flow Meter

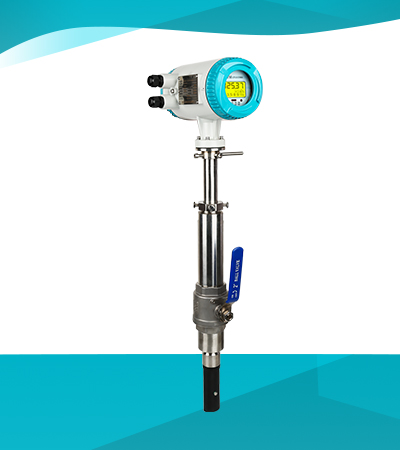

Insertion Electromagnetic Flow Meter
Insertion Electromagnetic Flow Meter

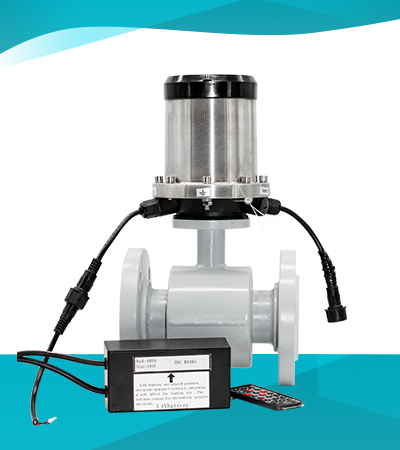

Battery-powered Electromagnetic Flow Meter
Battery-powered Electromagnetic Flow Meter

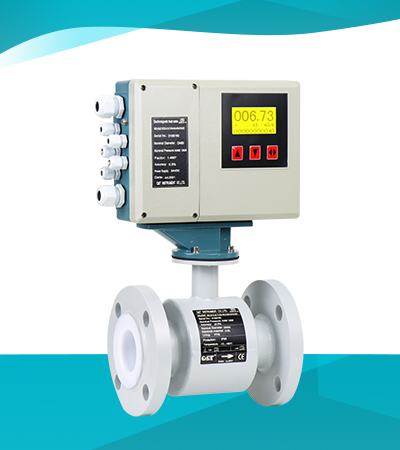

Electromagnetic Heat Meter
Electromagnetic Heat Meter

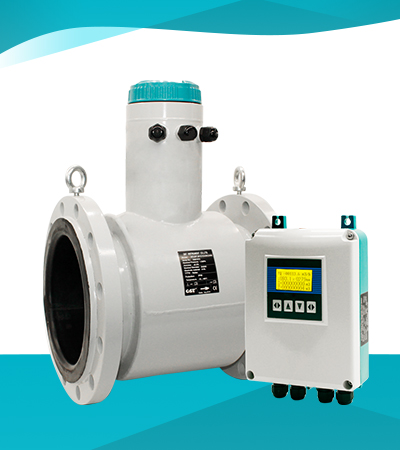

Partially-filled Electromagnetic Flow Meter
Partially-filled Electromagnetic Flow Meter
Applications Of Flange Electromagnetic Flow Meter Production Line
Electromagnetic flow meter is widely used in water treatment, food industry, pharmaceutical, petrochemical, paper mill, chemical monitoring etc. In the metallurgical industry, it is often used to control the flow of cooling water for continuous steel casting, continuous steel rolling, and steel-making electric furnaces; In the field of water supply and drainage in public utilities, electromagnetic flow meters are often used for the transfer measurement of finished product water and raw water in water plants; In the pulp process of the paper industry, electromagnetic flow meters are involved in the measurement of the flow of grinding pulp, water, acid, and alkali; In the coal industry, measuring coal washing and pipeline hydraulic conveying coal slurry. For food and beverage industries, it is used for beer and beverage filling measurement. For chemical and petrochemical industries, it is used to measure corrosive liquids, such as acids and alkalis etc

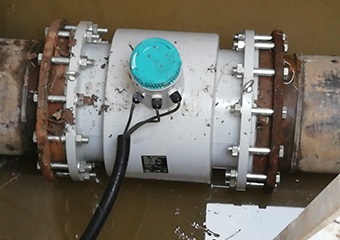

Water Treatment
Water Treatment
Food Industry
Food Industry
Pharmaceutical Industry
Pharmaceutical Industry
Paper Industry
Paper Industry
Chemical Monitoring
Chemical Monitoring
For more feeds consult our experts

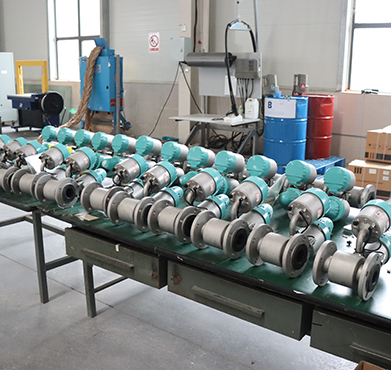

Production process
.There are no standard sizes, they can all be customized according to your factory space.
Raw material
Raw material
weld
weld
Spray paint
Spray paint
Fit out
Fit out
effect
effect

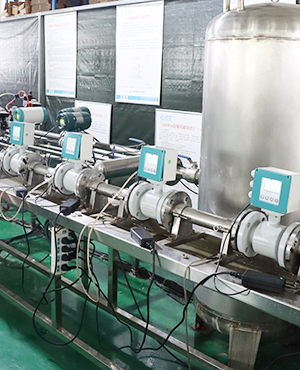

Quality inspection
Quality inspection
package
package
Get the free recipe
Technical Specification
There are no standard sizes, they can all be customized according to your factory space.
Flange Magnetic Flow MeterMain Performances Parameters
Size DN3-DN3000mm (1/8″-120″)
Accuracy ±0.5% of reading at flow velocity≥0.5m/s, ±0.2% optional at flow velocity≥0.5m/s
Velocity 0.1~15 m/s
Repeatability ≤0.17%

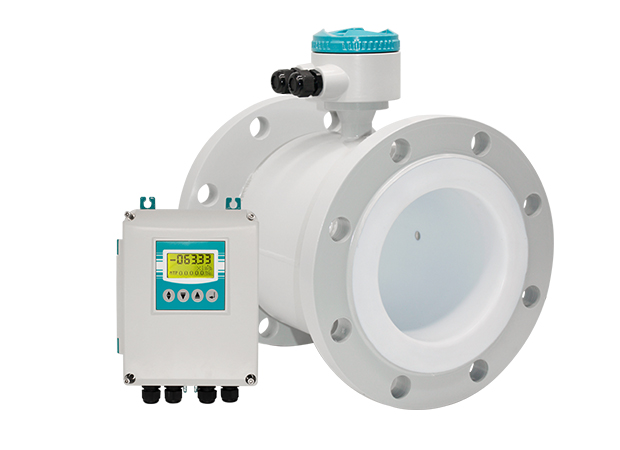

Structure Compact / remote, cable length 10m standard, 100m max
Conductivity > 5 μS/cm, demineralized water > 20 µS/cm
Protection Grade Transmitter: IP65 standard, IP67 optional
Sensor: IP65standard, IP68 (submersible, only available for remote type)
Electrode SS316L, Hastelloy C, Hastelloy B,Titanium,Tantalum, Platinum-iridium
Power Supply 85~250 VAC (50/60 Hz), 20~36 VDC
Power Consumption <20W
Communication RS485 MODBUS RTU standard, HART, GPRS, PROFIBUS optional
Display LCD Display,128X128mm, three lines, 4 buttons
AmbientTemperature -20°C~60°C
FluidTemperature Compact: -20°C~80°C, Remote: -20°C~120°C
Flange Standard DIN,ANSI, JIS

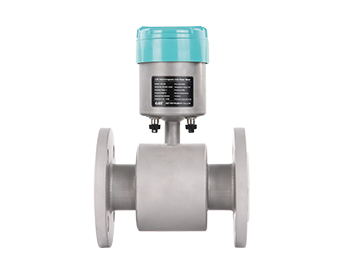

Electromagnetic water meter
Electromagnetic water meter is appliable for potable water district metering and custody transfer measurement. RS485 Modbus or GPRS communication with 3.6V battery powered or with 220VAC/24VDC powered. With temperature and pressure measurement for leak monitoring, no straight pipe needs for R400. Submered and burial installation are possible
Electromagnetic water meter
Electromagnetic water meter
Low pressure loss and low requirements for straight pipe sections. High measurement accuracy,starting flow rate of 5mm/s.
Quote Now

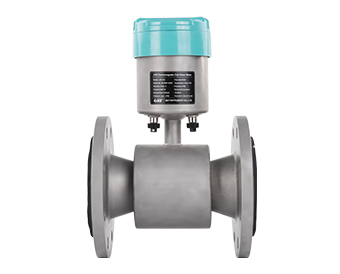

Reduced bore type
Reduced bore type
No need straight pipe in the upstream and downstream,better handle distorted velocity flow profiles arising from the pipe networks.
Quote Now

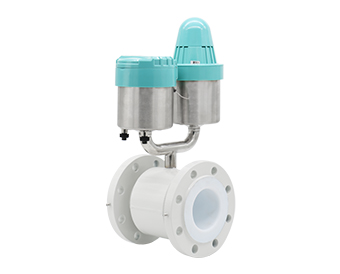

Wireless IOT built-in antenna
Wireless IOT built-in antenna
Optional communication RS485/Bluetooth/LORA/NBIOT/GPRS,etc. Protocol type MODBUS(Standard)
Quote Now

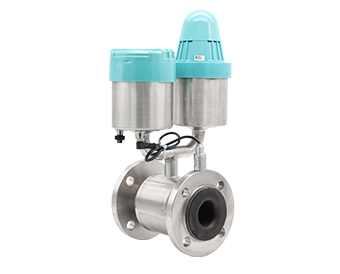

Pressure type
Pressure type
Protection grade is IP68, can be submgered or buried. Reserved external power supply entry, pressure/temperature sensor entry.
Quote Now

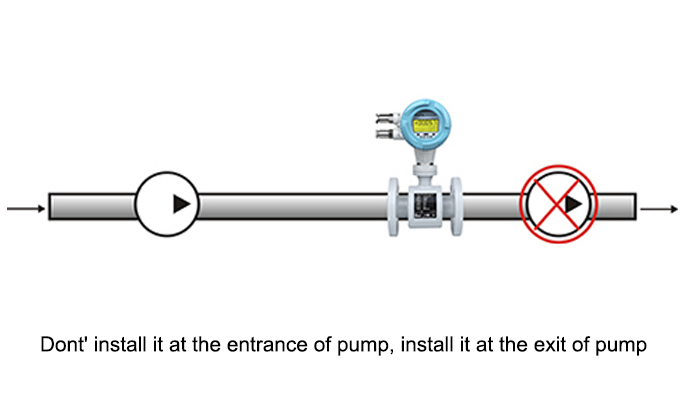

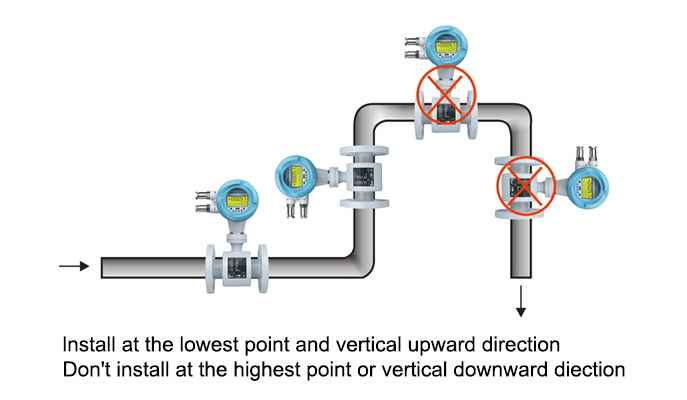

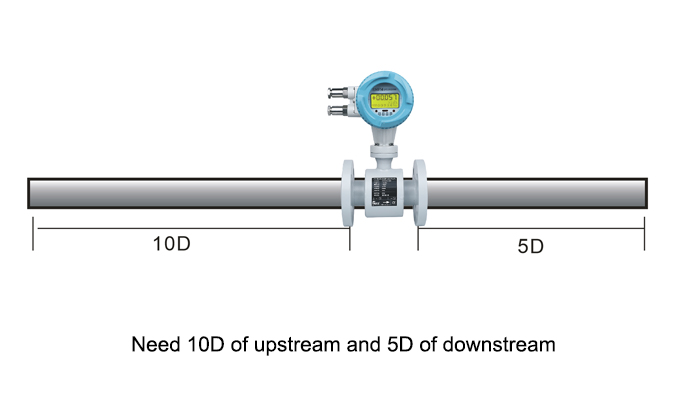

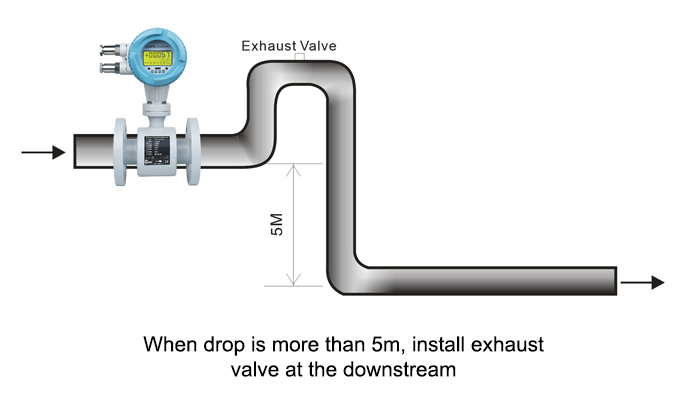

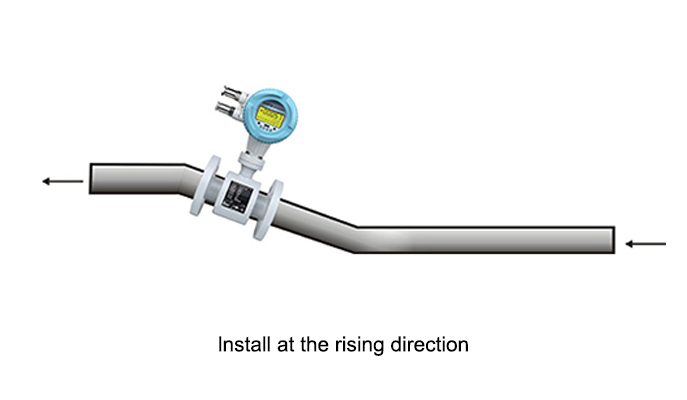

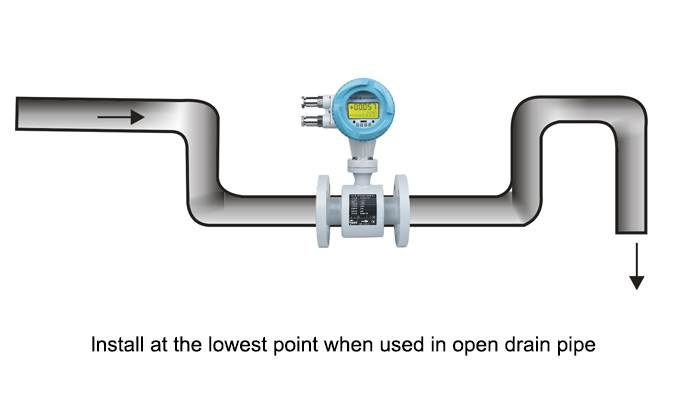

Flange Electromagnetic Flow Meter Installation Requirement
In order to obtain a stable and accurate flow measurement, it is very important that the flow meter is installed correctly in the pipe system. Do not install the meter near equipment that produces electrical interference such as electric motors, transformers, variable frequency, power cables etc. Avoid locations with pipe vibrations for example pumps. Do not install the meter close to pipeline valves, fittings or impediments which can cause flow disturbances. Place the meter where there is enough access for installation and maintenance tasks.
SEND YOUR INQUIRY
Exported to more than 150 countries around the globe, 10000 sets/month production capacity
I need to customize
Case Of Production Line/Plant/Project
We have successfully implemented many projects around the world and have countless outstanding projects for your reference.
Contact our project managers to see more cases
10000+
Units
Production efficiency

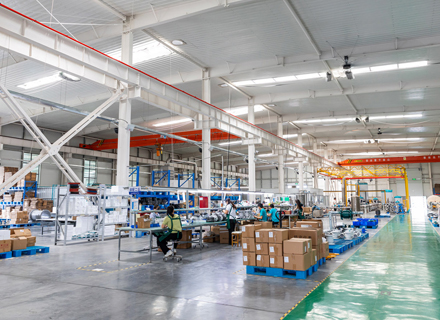

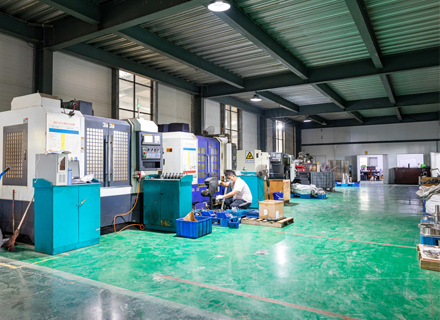

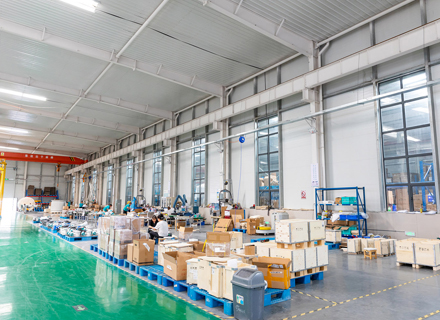

Our company stands tall as a beacon of precision and expertise in flow meter manufacturing. With a workforce of over 180 dedicated individuals, each member a seasoned engineer in their own right, our factory hums with the synchronized rhythm of innovation and craftsmanship.
Based in China, our company stands as a leading manufacturer of flow meters, catering to diverse industrial needs worldwide. With a robust production capacity exceeding 20,000 sets annually, we specialize in crafting high-quality electromagnetic, vortex, ultrasonic, and turbine flow meters, along with precision level meters. Our commitment to innovation and excellence ensures that each product meets stringent quality standards, delivering accurate measurements and reliability in various applications. As pioneers in the industry, we continually strive to push boundaries, offering cutting-edge solutions that empower industries to optimize their operations efficiently
Get A Quote
Customer Service
Professional Sales Engineer For You. You Are Welcome To Contact Us By "Live Chat"
Grace Li
Grace Li
Contact me
Sara Lu
Sara Lu
Contact me
Amy
Amy
Contact me
Linda Lu
Linda Lu
Contact me
Aileen Yang
Aileen Yang
Contact me
Frank Ma
Frank Ma
Contact me

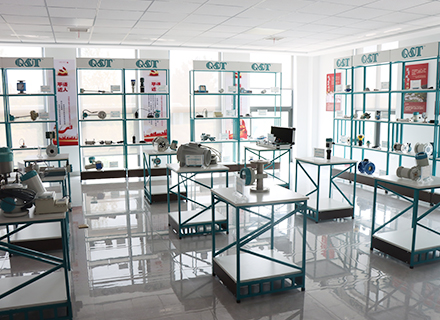

Q&T Factory
Q&T Instrument Co.,Ltd was founded in 2005 and covers an area of 69,000m2.
A High-tech enterprise with R&D, producing and marketing of various instruments, including the flow, level and flow testing device.
ISO9001, CE and  ATEX certificates etc.
Products have been exported to more than  150 countries and districts, including Asia, Europe, America, Australia and Africa. etc

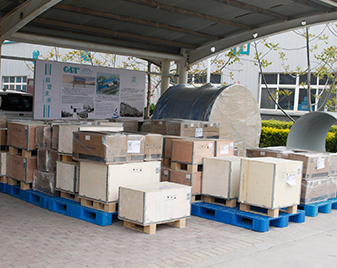

Packaging and Delivery
